3.5 BBL 2 Vessel Single-Walled Brewhouse
Out of stock
Special Price
$13,850.00
Regular Price
$15,948.99
From the engineering to our precise manufacturing processes, you won’t find a better match for price, performance, and quality. Simply put, Blichmann’s fully-equipped brewhouses are a greater value and better investment backed by the name you trust. Specifically designed for compact brewing spaces, the single-walled brewhouse includes everything you need to get up and running FAST! Perfect for taprooms and neighborhood breweries. Single-phase and three-phase options are available.
Mash Tun
- 5.3 BBL (165 gallon) gross capacity
- 17" x 14" manway
- Bottom drain fitting (1.5" TC) with butterfly valve, elbow, and cover
- Conveniently hinged lid
- 2.5" tri-clamp ferrule on lid
- CIP Spray Ball included
- 16-gauge, 304 brushed stainless steel construction
- Sturdy stainless steel stand
- Temperature sensor port
- Graduated level gauge
False Bottom
- Patented Button Louver™ design delivers high efficiency and plug resistance
- Easy installation and removal through the manway
Boil Kettle
- 5.3 BBL (165 gallon) gross capacity
- Bottom drain fitting (1.5" TC) with butterfly valve, elbow, and cover
- Whirlpool fitting
- Conveniently hinged lid
- 2.5" tri-clamp ferrules on lid for CIP Spray Ball and heating elements
- 16-gauge, 304 brushed stainless steel construction
- Sturdy stainless steel stand
- Temperature sensor port
- Graduated level gauge
Heating Elements
- Three 6,000 Watt 240V single phase with multiple three phase voltage options available
- Robust stainless steel construction
- Tri-clamp connection for effortless removal and cleaning
Control Panel
- UL / cUL listed
- Wash-down capable NEMA-4 enclosure
- GFCI main disconnect breaker
- Individual heater breakers
- PID temperature control
- Power control selector switches
- On/off/auto mode selector switches
- Wall mountable
- Option of 208V, three phase, 50 amps or 240V, single phase, 75 amps
- Check power requirements in manual before purchase
Other Included Accessories

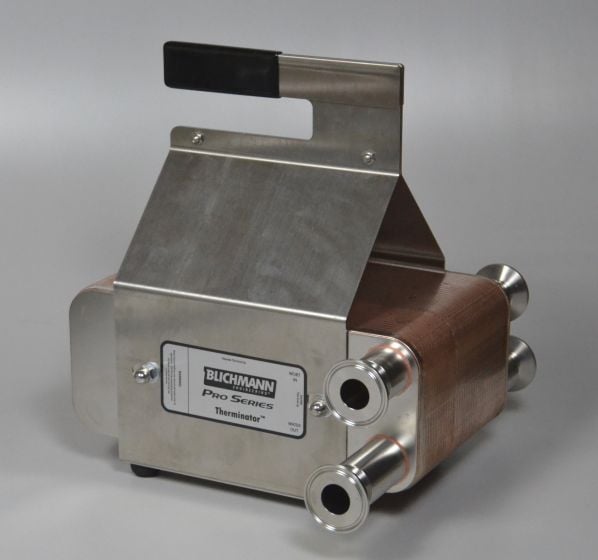

- Chiller with stainless steel brazed plate heat exchanger
- 1 March 1/5 HP 18 GPM pumps with stands, handles, and diaphragm valves
- Two 5-foot 1" ID x 1.5" tri-clamp end sanitary hoses
- One 10-foot 1" ID x 1.5" tri-clamp end sanitary hose
- Tri-clamp fittings for all kettles and hose attachments
Optional Accessories
- In-Line Oxygenation Kit
- Maintenance tool kit including paddle, tank brush, tube and valve brush, hoe, 1-gallon scoop, hand scrub brush, and hose spray nozzle
- Sanitary sight glass
- Cellaring equipment
WARNING: This product can expose you to chemicals including Nickel (Metallic), which is known in the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov
