Mash Tun

5.3 BBL (165 gallon) gross capacity 17″ x 14″ manway Bottom drain fitting (1.5″ TC) with butterfly valve, elbow, and cover Conveniently hinged lid 2.5″ tri-clamp ferrule on lid CIP Spray Ball included 16-gauge, 304 brushed stainless steel construction Sturdy stainless steel stand Temperature sensor port Graduated level gauge

False Bottom

Patented Button Louver™ design delivers high efficiency and plug resistance Easy installation and removal through the manway

Boil Kettle

5.3 BBL (165 gallon) gross capacity Bottom drain fitting (1.5″ TC) with butterfly valve, elbow, and cover Whirlpool fitting Conveniently hinged lid 2.5″ tri-clamp ferrules on lid for CIP Spray Ball and heating elements 16-gauge, 304 brushed stainless steel construction Sturdy stainless steel stand Temperature sensor port Graduated level gauge

Heating Elements

Three 6,000 Watt 240V single phase with multiple three phase voltage options available Robust stainless steel construction Tri-clamp connection for effortless removal and cleaning

Control Panel

UL / cUL listed Wash-down capable NEMA-4 enclosure GFCI main disconnect breaker Individual heater breakers PID temperature control Power control selector switches On/off/auto mode selector switches Wall mountable Option of 208V, three phase, 50 amps or 240V, single phase, 75 amps Check power requirements in manual before purchase

Other Included Accessories

Chiller with stainless steel brazed plate heat exchanger 1 March 1/5 HP 18 GPM pumps with stands, handles, and diaphragm valves Two 5-foot 1″ ID x 1.5″ tri-clamp end sanitary hoses One 10-foot 1″ ID x 1.5″ tri-clamp end sanitary hose Tri-clamp fittings for all kettles and hose attachments

Optional Accessories

In-Line Oxygenation Kit Maintenance tool kit including paddle, tank brush, tube and valve brush, hoe, 1-gallon scoop, hand scrub brush, and hose spray nozzle Sanitary sight glass Cellaring equipment

WARNING:  This product can expose you to chemicals including Nickel (Metallic), which is known in the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov

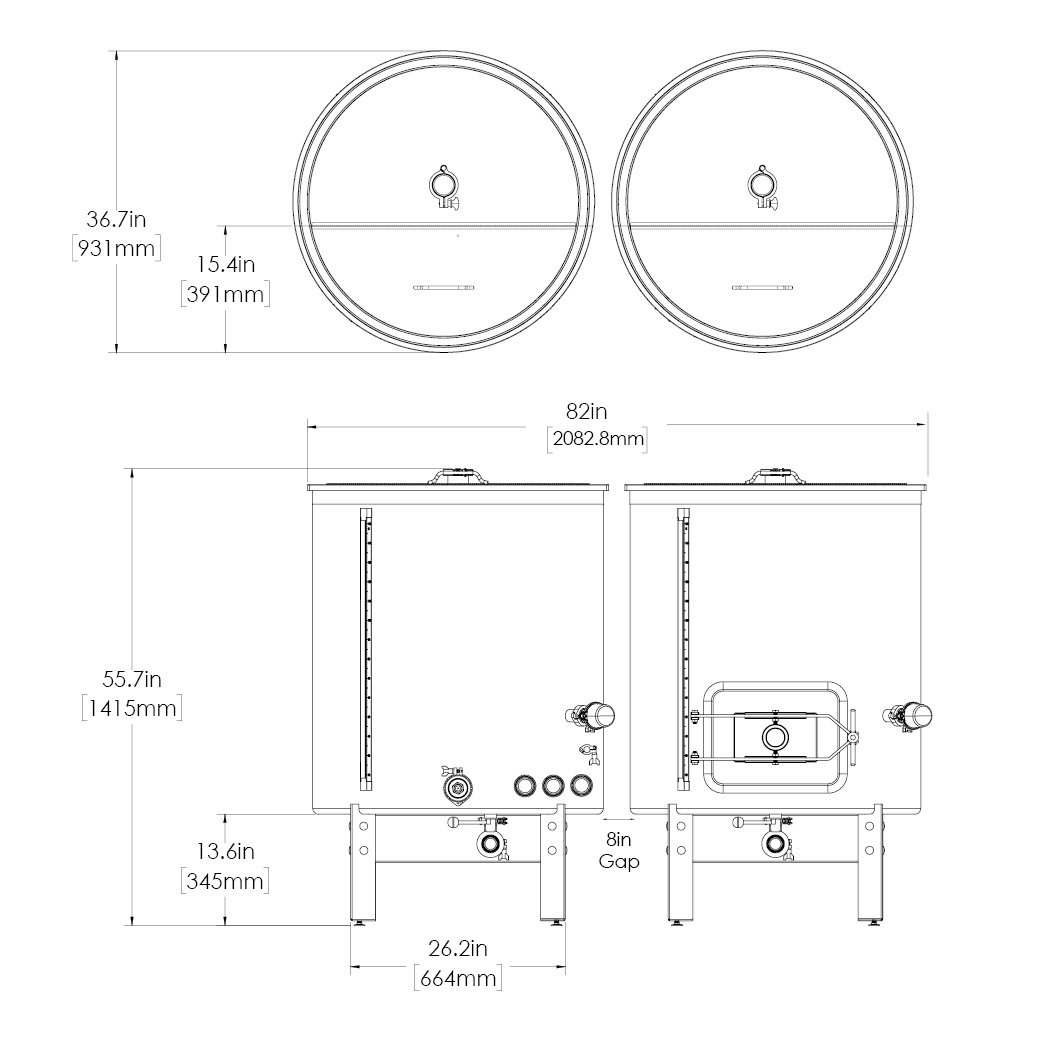

3.5 BBL 2 Vessel Single-Walled Brewhouse Dimensions

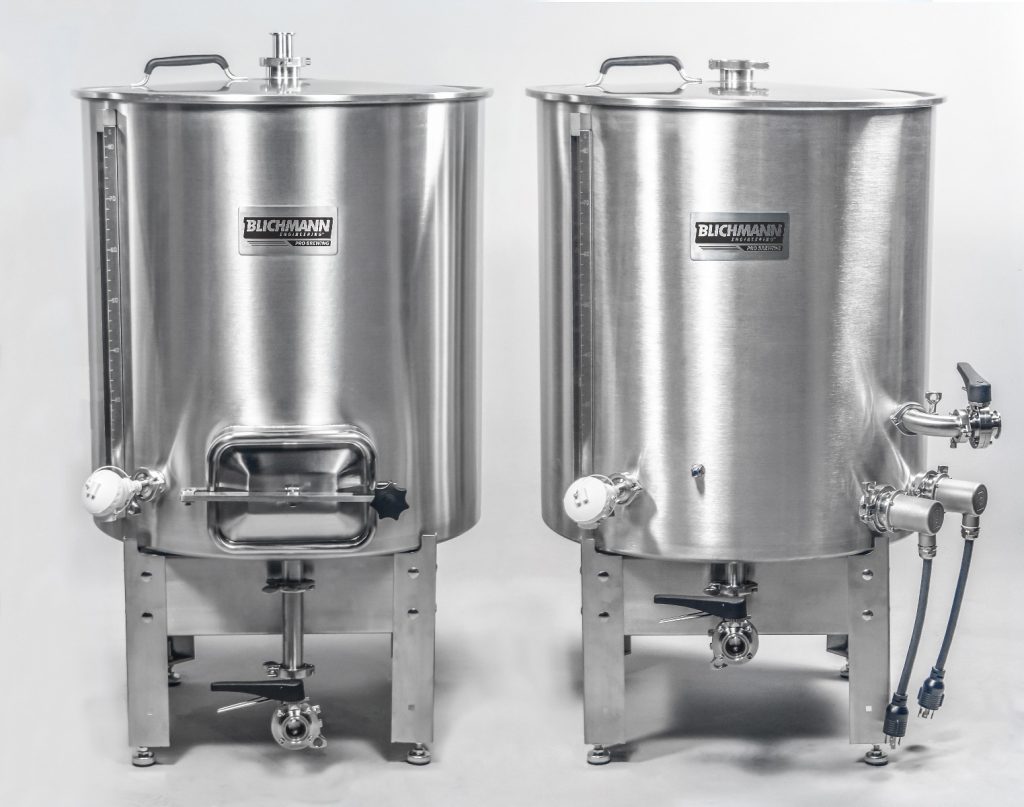

3.5 BBL 2 Vessel Single-Walled Brewhouse
