Mash Tun

15 gallon BoilerMaker™ AutoSparge™ False bottom

Boil Kettle / Hot Liquor Tank

20 gallon BoilerMaker™ boil kettle 15 gallon BoilerMaker™ hot liquor tank Whirlpool Kit

Controller

Two BrewCommander™ brewhouse controllers

Pump

Two RipTide™ brewing pumps

Burners

Three HellFire™ burners

Table

72″ x 24″ brewing table 25″ height for ergonomic access to kettles

*Table includes a junction box, not a receptacle box.

Misc. Accessories

Hoses and fittings Therminator™ wort chiller

Requirements

One 120v 15 Amp GFCI outlet

WARNING: This product can expose you to chemicals including Nickel (Metallic), which is known in the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov

Kettles

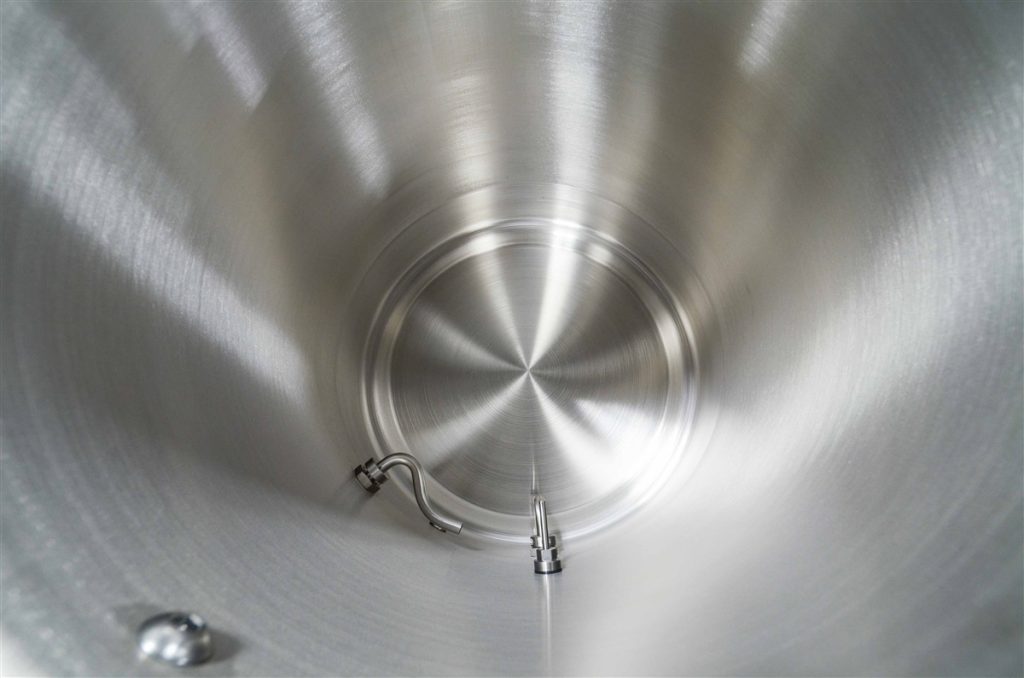

Heavy-gauge 304 stainless steel G2 Linear Flow Valve disassembles in seconds for easy cleaning, allows precise control of flow, and orients in any direction Rivet-free handles, rugged cool touch grips, and oriented for easy carrying Borosilicate glass level gauge Dip tube with rotating racking arm Lifetime limited warranty

Accessories

Patented Button Louver™ false bottom AutoSparge™ automatically sets hot liquor flow rate and liquid level in the mash tun Adjustable viewing angle thermometer Whirlpool fitting in boil kettle

HellFire™ Burner

140,000 BTU/hour at full power or 80,000 BTU/hour in efficiency mode (50% power setting) Patent-pending clip-on heat shield Infinitely adjustable kettle retaining bars accommodate kettles up to 19.75″ in diameter Non-rusting, fume-free heavy gauge stainless steel frame

BoilCoil™

Less than 30 W/in2, nearly half of the typical ultra-low watt density for cleaning Engineered to perform optimally with BoilerMaker™ G2 brew kettle and provide consistent heating performance, increase boil quality, and reduce boil-off rate Robust stainless steel construction Ultra-low watt density means no chance of scorching when used as directed Removable
