Mash Tun

3 BBL (91 gallon) gross capacity 11″ x 8″ manway Bottom drain fitting (1.5″ TC) with butterfly valve, elbow, and cover 2.5″ tri-clamp ferrule on lid CIP Spray Ball included 16-gauge, 304 brushed stainless steel construction Sturdy stainless steel stand Temperature sensor port Graduated level gauge

False Bottom

Patented Button Louver™ design delivers high efficiency and plug resistance Easy installation and removal through the manway

Boil Kettle and Hot Liquor Tank

3 BBL (91 gallon) gross capacity Bottom drain fitting (1.5″ TC) with butterfly valve, elbow, and cover Whirlpool fitting 2.5″ tri-clamp ferrules for CIP Spray Ball and heating elements 16-gauge, 304 brushed stainless steel construction Sturdy stainless steel stand Temperature sensor port Graduated level gauge Low-level float switch Heating Elements Four 6,000 Watt 240V single phase with multiple three phase voltage options available Robust stainless steel construction Tri-clamp connection for effortless removal and cleaning

Control Panel

UL / cUL listed Wash-down capable NEMA-4 enclosure Individual heater breakers PID temperature control Wall mountable Option of 208V, three phase, 68 amps or 240V, single phase, 100 amps Check power requirements in manual before purchase

Other Included Accessories

Chiller with stainless steel brazed plate heat exchanger 2 March 1/5 HP 18 GPM pumps with stands, handles, and diaphragm valves Three 5-foot 1″ ID x 1.5″ tri-clamp end sanitary hoses One 10-foot 1″ ID x 1.5″ tri-clamp end sanitary hose Tri-clamp fittings for all kettles and hose attachments

Optional Accessories

In-Line Oxygenation Kit Maintenance tool kit including paddle, tank brush, tube and valve brush, hoe, 1-gallon scoop, hand scrub brush, and hose spray nozzle Sanitary sight glass Cellaring equipment

WARNING:  This product can expose you to chemicals including Nickel (Metallic), which is known in the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov

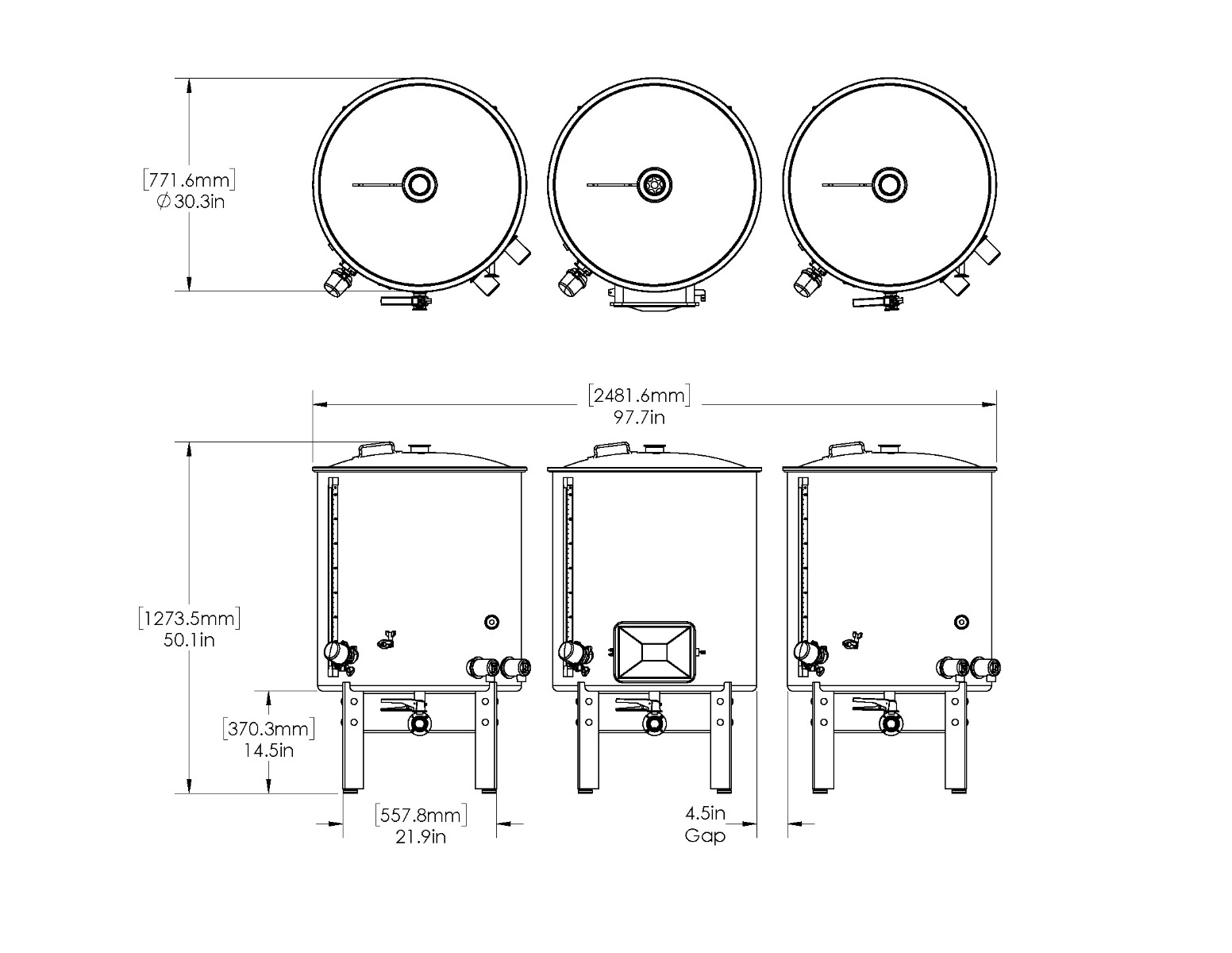

2 BBL Single-Walled Brewhouse Dimensions

2_BBL_Hybrid_Manual_V6
