COMMERCIAL BREWING SYSTEMS
COMMERCIAL BREWING SYSTEMS BY BLICHMANN

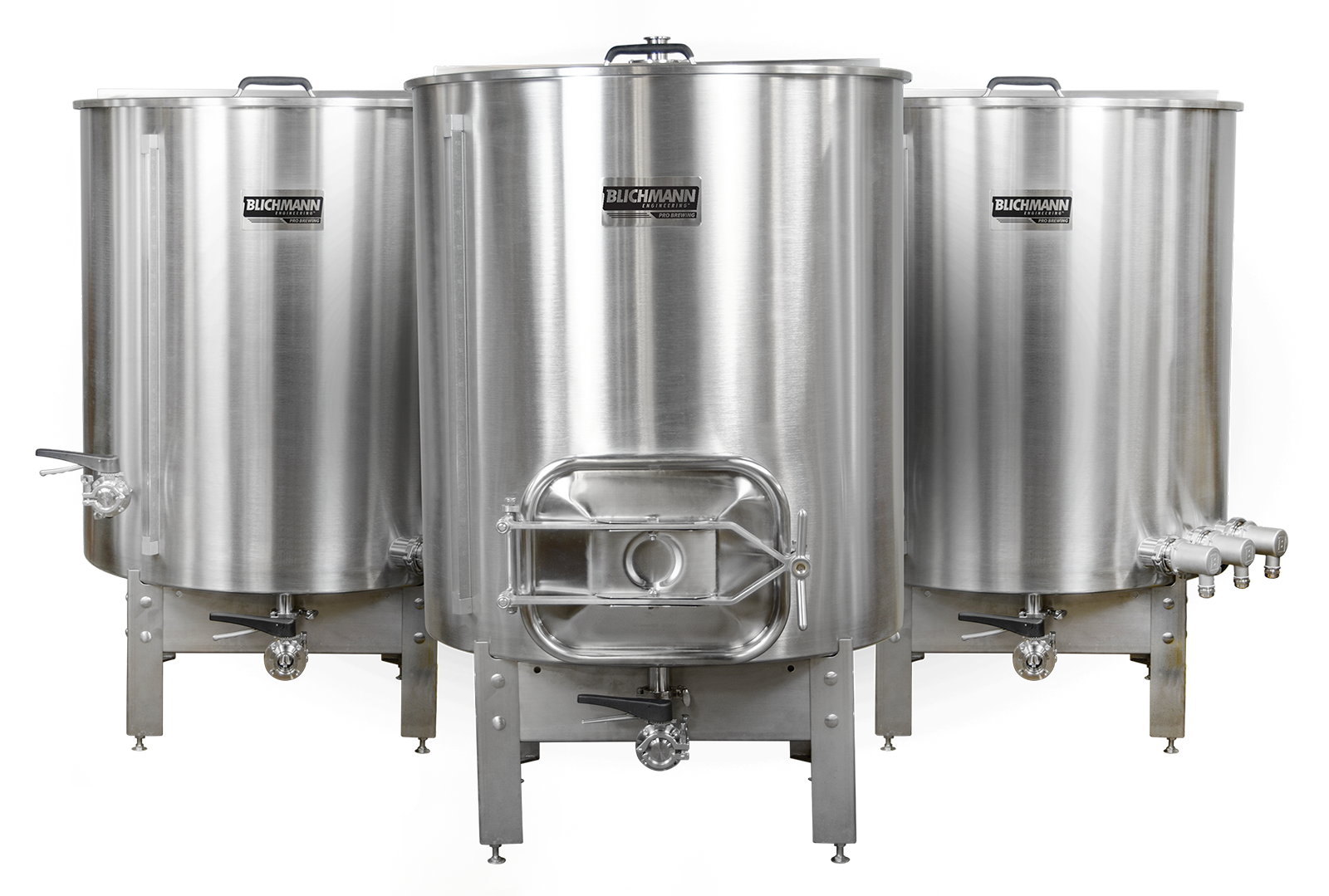

System Overview
Blichmann Engineering’s single-wall Pro Brewing Systems are engineered for compact spaces and fast deployment, making them perfect for taprooms and neighborhood breweries. Available in 2bbl, 3.5bbl, and 5bbl sizes, these fully equipped brewhouses combine precise manufacturing with high performance at a competitive price. They offer a seamless transition into commercial brewing systems with lower startup costs, backed by our trusted quality and an industry-leading warranty.
Key Features
- Compact design optimized for small brewing footprints, with easy assembly and minimal space requirements.
- Versatile heating options: single-phase (240V), three-phase (208V/480V), or HERMS for flexible temperature control.
- Ultra-low watt density heating elements (e.g., 9,000W per element in 5bbl models) for efficient, safe operation without dry firing risks.
- Integrated control panel with PID controllers for precise temperature stability (±1°F) and automated modes.
- Sanitary construction using 304 stainless steel vessels, whirlpool ports in HLT and boil kettle, and fly-sparge setup for clear wort production.
Technical Specifications
| Specification | 2bbl | 3.5bbl | 5bbl |
|---|---|---|---|
| Capacity | 2 barrels (62 gallons) | 3.5 barrels (108.5 gallons) | 5 barrels (155 gallons) |
| Power Requirements | Up to 228A at 240V single-phase or 156A at 208V three-phase | Similar scalable options | 156A at 208V three-phase, 66A at 480V three-phase, or 228A at 240V single-phase |
| Heating Rate | 0.8-1.5°F/min | 0.8-1.5°F/min | 0.8-1.5°F/min |
| Vessel Material | 304 stainless steel, single wall | 304 stainless steel, single wall | 304 stainless steel, single wall |
| Temperature Loss | <1°F/hr in mash tun | <1°F/hr in mash tun | <1°F/hr in mash tun |
| Dimensions (approx.) | Compact footprint for tight spaces | Mid-size for nano setups | Larger but still space-efficient |
Included Components and Accessories
Core vessels: Mash/Lauter Tun (MLT), Hot Liquor Tank (HLT), and Boil Kettle, all with stands and leveling feet.
Pumps: 1/5 HP brewery pump for transfers and 1 HP brewing pump for high-flow tasks.
Control system: Panel with PID controllers, timers, and selector switches for manual/auto operation.
Chiller and fittings: Pro Series 2.0 SQM wort chiller, sanitary tri-clamps, valves, hoses (e.g., 1″ x 7′ and 12′ assemblies), and CIP spears.
Optional add-ons like in-line oxygenation kits or pump carts available.
Maintenance kit: Paddle, tank brush, hoe, scoop, scrub brush, and hose nozzle for easy upkeep.
Benefits and Why Choose Blichmann
Fast ROI: Quick installation and efficient brewing reduce downtime, allowing more batches and faster profits.
Reliability: Backed by decades of engineering expertise, with minimal maintenance and long-lasting components like encased heating elements.
Efficiency: High mash efficiency, reduced temperature loss, and streamlined processes like underletting and vorlauf for superior wort quality.
Scalability: Start small and expand easily with compatible accessories and upgrades.
Superior Value: Unmatched price-to-performance ratio from a trusted brand used by breweries worldwide.
Contact our team for custom configurations.

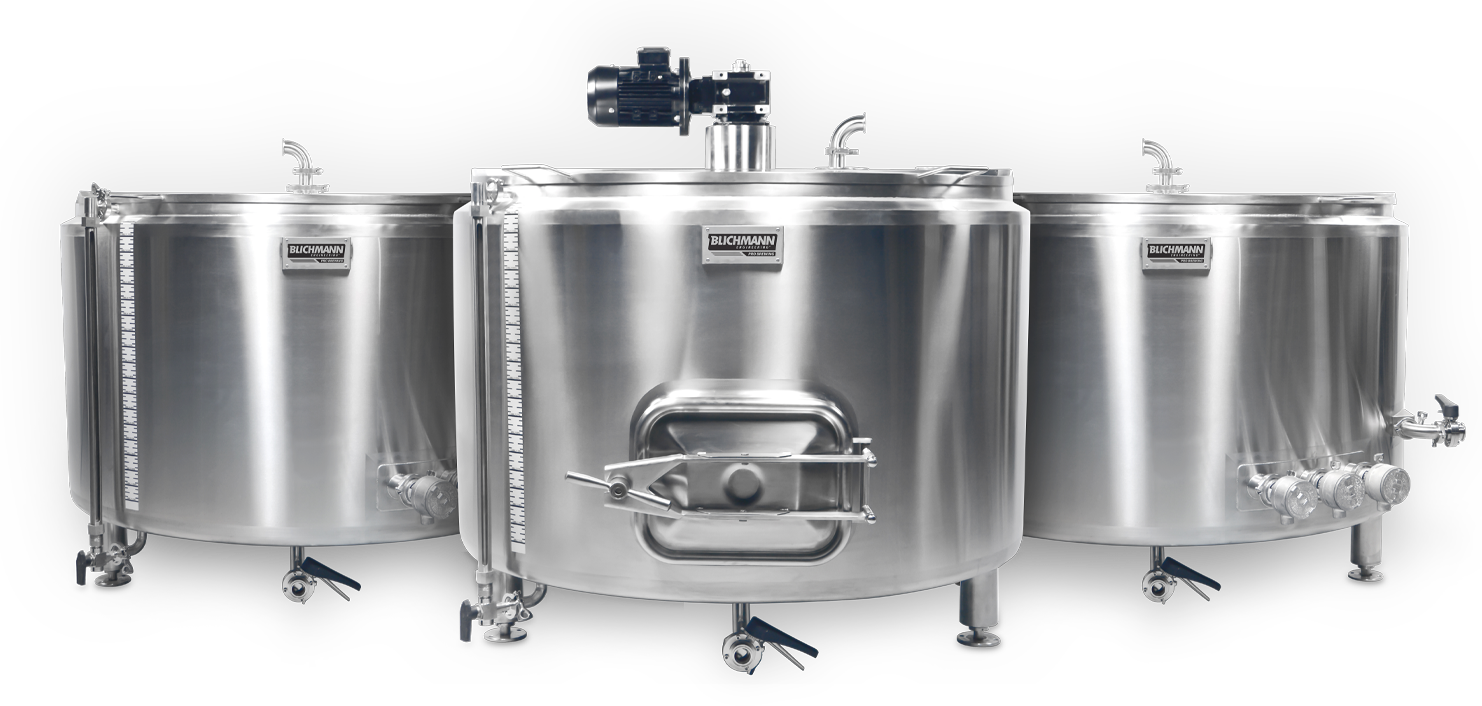

System Overview
Blichmann Engineering’s insulated pro brewing systems deliver enhanced performance for growing breweries, with superior temperature retention and efficiency. Available in 5bbl and 7bbl sizes, these commercial brewing systems are built for tighter control and larger capacities, perfect for nano-breweries scaling up or taprooms focusing on consistency. Combining our robust insulation with our precise engineering for a reliable, high-volume production at a great value.
Key Features
- Insulated vessels for minimal heat loss and energy-efficient operation, maintaining stable temperatures during extended mashes.
- Hybrid design with fly-sparge, whirlpool ports, and options for single-phase or three-phase power.
- Advanced control panel with PID for precise ramping and holding, plus safety interlocks.
- Skidded setup for hard-plumbed convenience and easy mobility in the brewhouse.
- Sanitary 304 stainless steel construction with enhanced insulation for professional-grade durability and sanitation.
Technical Specifications
| Specification | 5bbl | 7bbl |
|---|---|---|
| Capacity | 5 barrels (155 gallons) | 7 barrels (217 gallons) |
| Power Requirements | 156A at 208V three-phase, 66A at 480V three-phase, or 228A at 240V single-phase | Similar scalable options, with single or three-phase hybrid |
| Heating Rate | 0.8-1.5°F/min with improved insulation | 0.8-1.5°F/min with superior thermal retention |
| Vessel Material | 304 stainless steel, insulated | 304 stainless steel, insulated |
| Temperature Loss | <<1°F/hr thanks to insulation | <<1°F/hr for extended efficiency |
| Dimensions (approx.) | Skidded for medium spaces | Larger skidded footprint for production |
Included Components and Accessories
Core vessels: Insulated Mash/Lauter Tun, Hot Liquor Tank, and Boil Kettle on skids.
Pumps: High-flow 1/5 HP and 1 HP magnetic drive pumps for transfers.
Control system: Integrated panel with timers, PID controllers, and emergency features.
Chiller and fittings: Pro Series wort chiller, sanitary hoses, valves, CIP tools, and tri-clamps.
Optional add-ons like in-line oxygenation kits or pump carts available.
Maintenance kit: Comprehensive tools like paddles, brushes, and nozzles for pro-level care.
Upgrades like automation or additional manifolds available.
Benefits and Why Choose Blichmann
Energy Efficiency: Insulation reduces heat loss, lowering utility costs and improving mash stability for better beer quality.
Scalable Production: Handles larger batches with tighter control, ideal for growth without sacrificing precision.
Time Savings: Centralized manifold and skidded design speed up brew days with less setup and cleanup.
Durability: Engineered for long-term performance with minimal maintenance, backed by our 5-year warranty.
Proven Results: Trusted by global breweries for consistent, high-efficiency brewing that drives ROI.
Reach out for tailored advice on your setup.
-
2 BBL 2 Vessel Single-Walled Brewhouse
-
2 BBL Single-Walled Brewhouse
-
3.5 BBL 2 Vessel Single-Walled Brewhouse
-
3.5 BBL Single-Walled Brewhouse
-
3.5 BBL Single-Walled Gas Fired Brewhouse
-
5 BBL Single-Walled 2 Vessel Brewhouse
-
5 BBL Single-Walled Brewhouse
-
5 BBL Insulated Brewhouse
-
7 BBL Insulated Brewhouse
