Backed by our industry-leading 5-year warranty, you can purchase Blichmann unitank-capable fermentors with confidence knowing they’re built for optimal fermentation. Designed for compact spaces, all valves and accessories are front-mounted for easy use and close spacing between tanks.

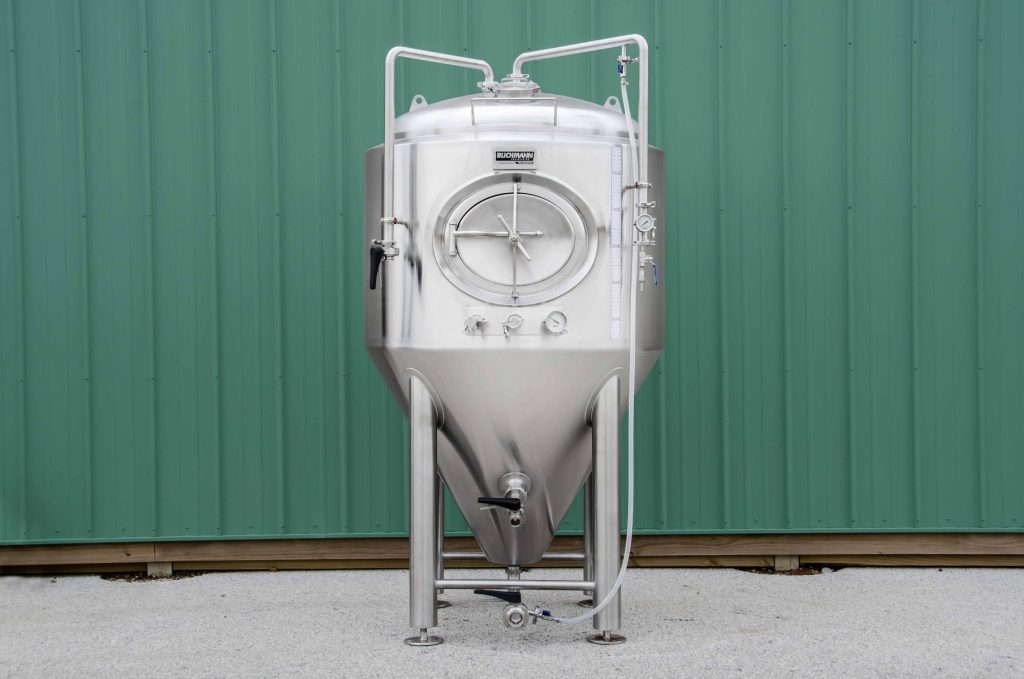

7-30 BBL Fermenter / Unitank

Model Number: BEPS-FV-7BBL-Group

Price not available for this product.

Out of stock

15 psi design pressure 14-gauge, fully-welded, 304 stainless steel exterior shell with #4 brush 11-gauge, 304 stainless steel interior shell Interior finished to Ra 0.8 micron sanitary finish and passivated 60-degree cone bottom, jacketed Independent dimpled cooling jackets (cone and cylinder) with individual glycol inlet and outlet Rotating rack arm with butterfly valve and cover Bottom dump 1.5″ tri-clamp fitting with butterfly valve, elbow, and cover Sample valve CIP arm with spray ball and piping Blow-off port Vacuum and pressure relief valve 4″-thick polyurethane insulation for cooling jacket and cone Shadowless side manway door 10″ diameter top hatch 3″ dial thermometer Pressure gauge
SPECIFICATIONS 7 BBL 10 BBL 15 BBL 20 BBL Height 89.5″ 91″ 100″ 102″ Width 48″ 48″ 57.5″ 61.5″ Empty Weight 672lbs 672lbs 970lbs 1060lbs Gross Volume 273 – – – Net Volume 250 380 500 640 % Head Space 20% 12% 12% 12% Pressure Rating 15 psi 15 psi 15 psi 15 psi Glycol Jacket Pressure Rate 3 bar = 43.5 psi 3 bar = 43.5 psi 3 bar = 43.5 psi 3 bar = 43.5 psi Insulation Thickness 80mm 80mm 80mm 80mm Manway Location Front Front Front Front Leg Support Leveling Feet Leveling Feet Leveling Feet Leveling Feet
