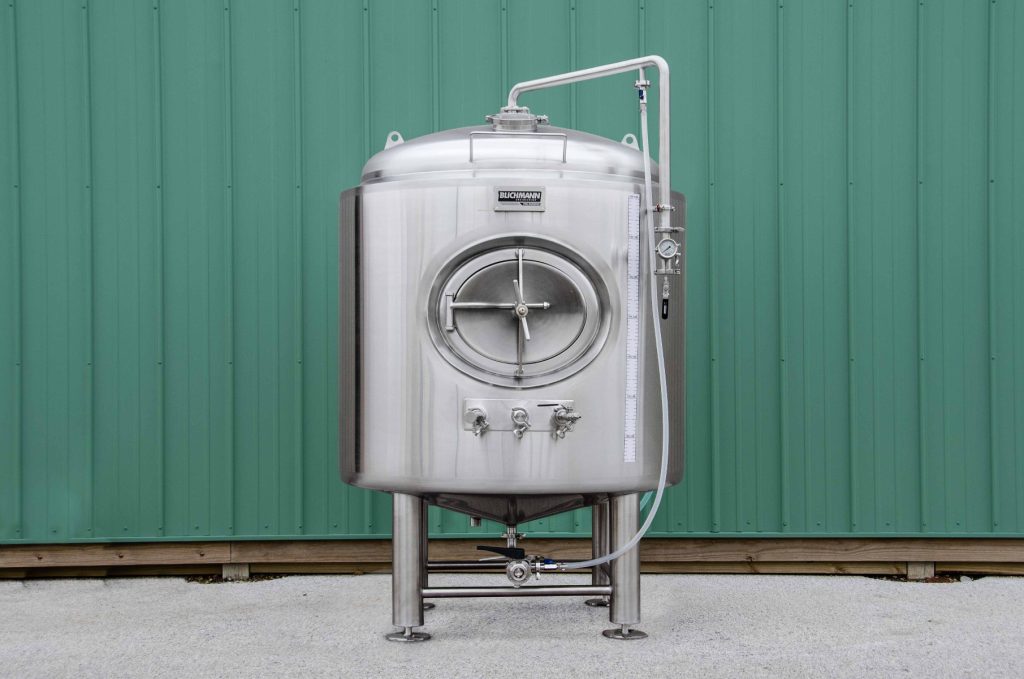

15 PSI design pressure Interior finished to Ra 0.8 micron sanitary finish and passivated 12% headspace Stainless steel legs with leveling feet Cooling jacket on bottom and sidewall (1” female NPT) CIP spray ball and arm with CO2 supply quick connect Carbonation stone All fittings, clamps, and valves included with tank Pressure gauge Level gauge with isolation valves Sample valve Pressure/vacuum relief valve Stand pipe for bottom drain 3 front-mounted 1.5” tri-clamp ports (optional dial type thermometer, carbonation stone, 1.5″ tri-clamp cap)

SPECIFICATIONS 7 BBL 10 BBL 15 BBL 20 BBL Height 78.5″ 91″ 100″ 102″ Width 50″ 48″ 57.5″ 61.5″ Empty Weight 650lbs 672lbs 970lbs 1060lbs Net Volume 227 380 500 640 % Head Space 12% 12% 12% 12% Pressure Rating 15 psi 15 psi 15 psi 15 psi Glycol Jacket Pressure Rate 3 bar = 43.5 psi 3 bar = 43.5 psi 3 bar = 43.5 psi 3 bar = 43.5 psi Insulation Thickness 80mm 80mm 80mm 80mm Manway Location Front Front Front Front Leg Support Leveling Feet Leveling Feet Leveling Feet Leveling Feet</td
