Our Pro Brewing Hybrid®™ Brewhouses are manufactured to our demanding quality specifications by suppliers that share our passion for quality and value. From the Engineering, to the highly automated manufacturing processes, you won’t find a better match of price, performance and quality. In a single word – Value. All backed by a name you know and trust – Blichmann Engineering™. You’ll also find that we’ve included all the accessories listed to get the product into production quickly. No need to spend hours of your valuable time procuring these components! Single phase and 3-phase options available.

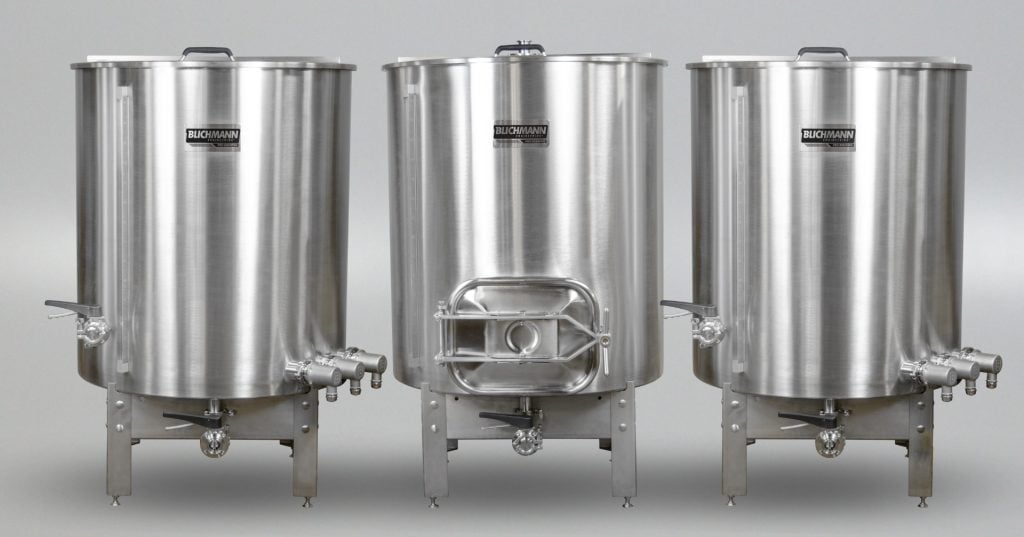

3.5 BBL Single-Walled Brewhouse

Model Number: BEPS-BH-3.5BBL-Group

Price not available for this product.

Out of stock

Mash Tun

5.3 BBL (165 gallon) gross capacity 17″ x 14″ manway Bottom drain fitting (1.5″ TC) with butterfly valve, elbow, and cover Conveniently hinged lid 2.5″ tri-clamp ferrule on lid CIP Spray Ball included 16-gauge, 304 brushed stainless steel construction Sturdy stainless steel stand Temperature sensor port Graduated level gauge



False Bottom

Patented Button Louver™ design delivers high efficiency and plug resistance Easy installation and removal through the manway



Boil Kettle and Hot Liquor Tank

5.3 BBL (165 gallon) gross capacity Bottom drain fitting (1.5″ TC) with butterfly valve, elbow, and cover Whirlpool fitting Conveniently hinged lid 2.5″ tri-clamp ferrules for CIP Spray Ball and heating elements 16-gauge, 304 brushed stainless steel construction Sturdy stainless steel stand Temperature sensor port Graduated level gauge

Heating Elements

Six 6,000 Watt 240V single phase with multiple three phase voltage options available Robust stainless steel construction Tri-clamp connection for effortless removal and cleaning

Control Panel

UL / cUL listed Wash-down capable NEMA-4 enclosure Includes programmable system start timer GFCI main disconnect breaker Individual 30A heater breakers PID temperature control Power control selector switches allow 33%, 66%, and 100% power output On/off/auto mode selector switches allow for temperature control Wall mountable with optional floor-mounted stand Three RTD temperature sensors Option of 208V, three phase, 102 amps or 240V, single phase, 150 amps Check power requirements in manual before purchase

Other Included Accessories

Chiller with stainless steel brazed plate heat exchanger 2 March 1/5 HP 18 GPM pumps with stands, handles, and diaphragm valves Three 5-foot 1″ ID x 1.5″ tri-clamp end sanitary hoses One 10-foot 1″ ID x 1.5″ tri-clamp end sanitary hose Tri-clamp fittings for all kettles and hose attachments

Optional Accessories

In-Line Oxygenation Kit Maintenance tool kit including paddle, tank brush, tube and valve brush, hoe, 1-gallon scoop, hand scrub brush, and hose spray nozzle Sanitary sight glass Cellaring equipment

WARNING:  This product can expose you to chemicals including Nickel (Metallic), which is known in the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov

Power Supply 240V SP 208V 3PI 480V 3P Element Size 6 kW 6 kW 6 kW BK Elements (3) 75 amps 51 amps 21.9 amps HLT Elements (3) 75 amps 51 amps 21.9 amps Total Amps 150 amps 102 amps 43.8 amps
