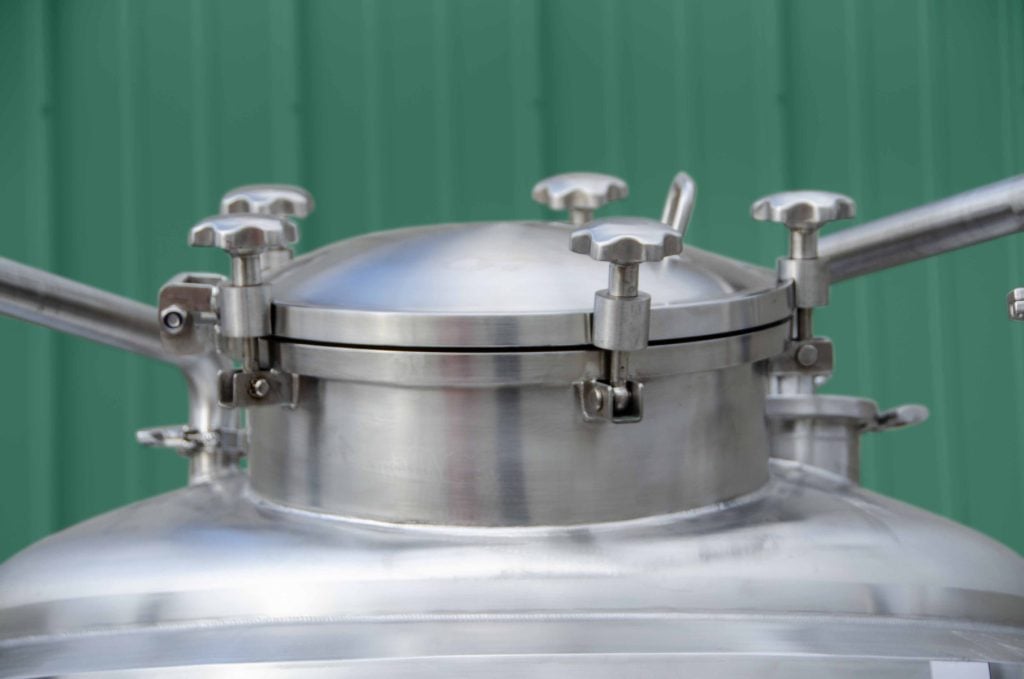

15 psi design pressure 14-gauge, fully-welded, 304 stainless steel exterior shell with #4 brush 11-gauge, 304 stainless steel interior shell Interior finished to Ra 0.8 micron sanitary finish and passivated 60-degree cone bottom, jacketed Rotating rack arm with butterfly valve and cover Bottom dump 1.5″ tri-clamp fitting with butterfly valve, elbow, and cover Sample valve CIP arm with spray ball and piping Blow-off port Vacuum and pressure relief valve 2″-thick polyurethane insulation for cooling jacket and cone Large 17″ diameter top hatch 3″ dial thermometer Pressure gauge

SPECIFICATIONS 3.5 BBL     Height 77.5″ Width 36.5″ Empty Weight 440lbs Gross Volume 148 Net Volume 130 % Head Space 20% Pressure Rating 15 psi Glycol Jacket Pressure Rate 3 bar = 43.5 psi Insulation Thickness 60mm Manway Location Top Leg Support Leveling Feet
