A complete electric brewing system! These Pro Brewing turnkey brewing systems come with everything you need for mashing, boiling, sparging and cooling! All you need on top of this system is something to ferment in! Perfect for home use or as pilot systems for commercial breweries, these systems use three top-of-the-line BoilerMaker™ kettles with a horizontal arrangement where two RipTide™ pumps move water and wort between kettles and through the Therminator™ wort chiller, making brew days a breeze! Loaded with all the accessories you could need for a complete brew day, including 240v heating elements and RIMS-Rocket™, temperature control modules, false bottom, AutoSparge™ for sparging, whirlpool fitting in the boil kettle, RipTide™ pumps and stainless-steel brewing table on casters. No fuss, no hassle, just pure pro brewing power!

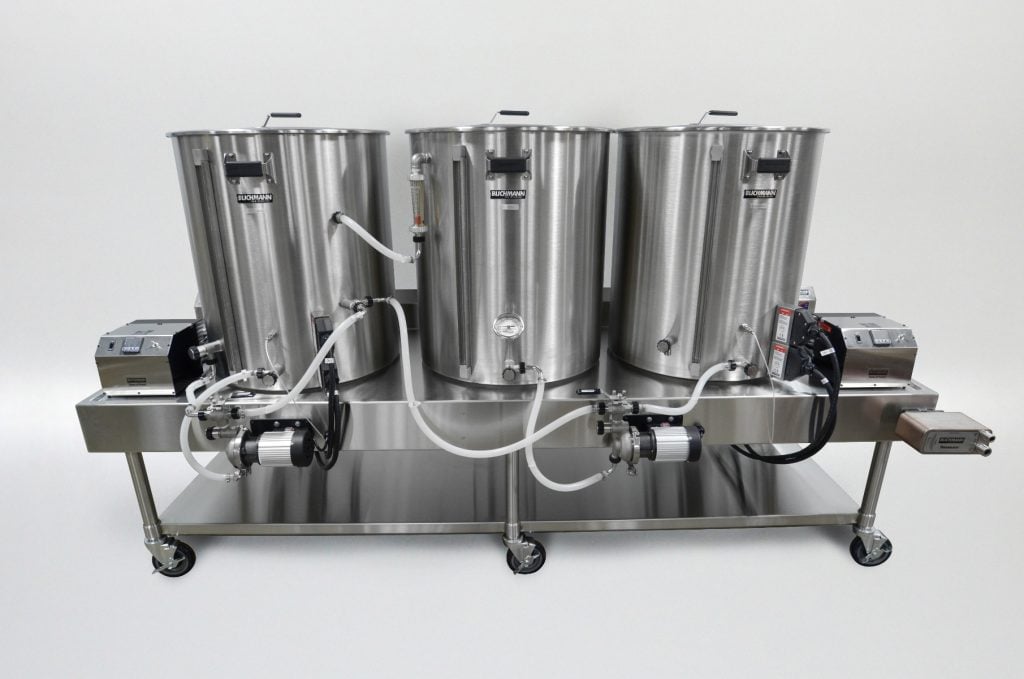

1 BBL Electric HERMS Pilot System
Kettles
Heavy-gauge 304 stainless steel G2 Linear Flow Valve disassembles in seconds for easy cleaning, allows precise control of flow, and orients in any direction Rivet-free handles, rugged cool touch grips, and oriented for easy carrying Borosilicate glass level gauge Dip tube with rotating racking arm Lifetime limited warrantyAccessories
Patented Button Louver™ false bottom AutoSparge™ automatically sets hot liquor flow rate and liquid level in the mash tun Adjustable viewing angle thermometer Whirlpool fitting in boil kettleBoilCoil™
Less than 30 W/in2, nearly half of the typical ultra-low watt density for cleaning Engineered to perform optimally with BoilerMaker™ G2 brew kettle and provide consistent heating performance, increase boil quality, and reduce boil-off rate Robust stainless steel construction Ultra-low watt density means no chance of scorching when used as directed The 240v model includes a 12 foot factory-wired cable with molded twist-lock L630P plug Removable, custom-engineered plug that makes cleaning a snapRipTide™ Brewing Pump
Ultra-quiet motor Tri-clamp disassembly for easy cleaning Integral G2 Linear Flow ValveBrewCommander™ Temperature Controller
PID temperature control On / Off / Auto mode selector switches Class A precision RTD temperature sensor Digital power control to meter the intensity of the heating element from 0-100% Controllers are table-mounted for convenience Compact enclosure Brushed stainless cover and gloss black powder-coated case that will withstand for yearsHeavy-Duty Custom Table
14-gauge 304 stainless steel Drip ledge to contain spills Apron to mount accessories Stainless steel legs and lower storage shelf Built-in junction boxes Heavy-duty casters for mobility Height-adjusting lower storage shelf Made in USAMash Tun
55 gallon electric BoilerMaker™ 240V BoilCoil™ HERMS CoilBoil Kettle / Hot Liquor Tank
55 gallon electric BoilerMaker™ 240v BoilCoil™ Whirlpool KitController
Two BrewCommander™ brewhouse controllersPump
Two RipTide™ brewing pumpsTable
96″ x 30″ brewing table 24″ height for ergonomic access to kettles*Table includes a junction box, not a receptacle box.
Misc. Accessories
Hoses and fittings Therminator™ wort chillerElectrical Requirements
Four 240v 30 Amp GFCI L630R outlets One 120v 15 Amp GFCI outlet
