Key features include:

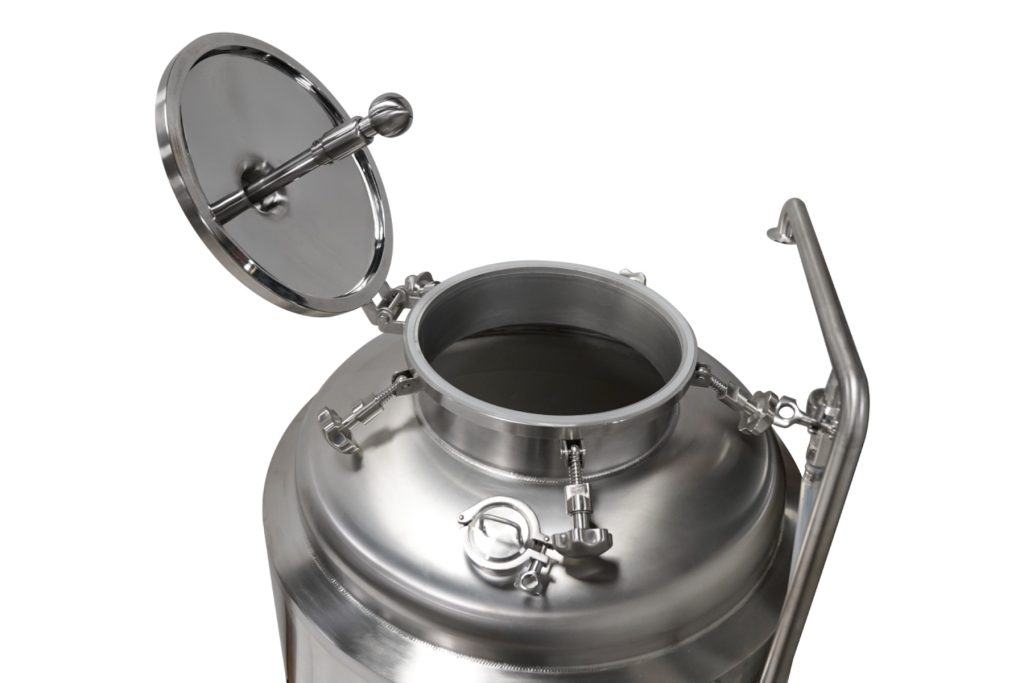

15 psi design pressure 14-gauge, fully-welded, 304 stainless steel exterior shell with #4 brush 11-gauge, 304 stainless steel interior shell Interior finished to Ra 0.8 micron sanitary finish and passivated 60-degree cone bottom Rotating rack arm with butterfly valve and cover Bottom dump fitting with butterfly valve, elbow, and cover Sample valve CIP arm with spray ball and piping Blow-off port Vacuum and pressure relief valve 2.36″-thick polyurethane insulation for cooling jacket and cone Top manway door 3″ dial thermometer Pressure gauge
SPECIFICATIONS
1BBL
Height
61.75″
Width
27.7″
Empty Weight
242lbs
Gross Volume
160
Net Volume
140
% Head Space
20%
Pressure Rating
15 psi
Glycol Jacket Pressure Rate
3 bar = 43.5 psi
Insulation Thickness
60mm
Manway Location
Top
Leg Support
Locking Castors
SPECIFICATIONS
2 BBL
Height
71.75″
Width
31.5″
Empty Weight
352lbs
Gross Volume
79
Net Volume
69
% Head Space
20%
Pressure Rating
15 psi
Glycol Jacket Pressure Rate
3 bar = 43.5 psi
Insulation Thickness
60mm
Manway Location
Top
Leg Support
Leveling Feet
