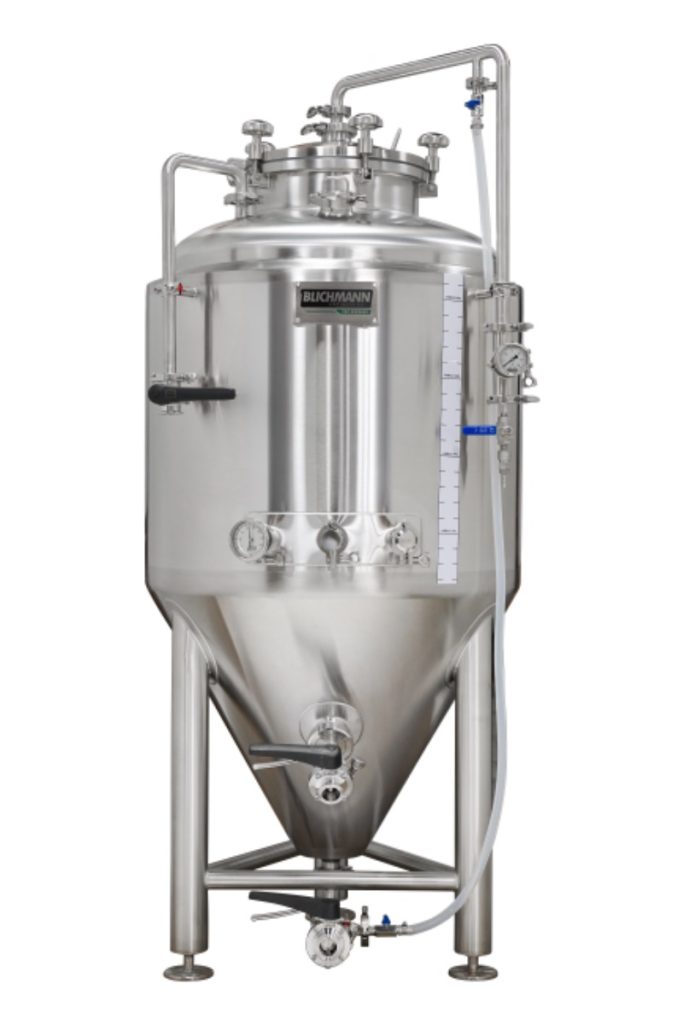

15 PSI design pressure Interior finished to Ra 0.8 micron sanitary finish and passivated 12% headspace Stainless steel legs with leveling feet Cooling jacket on bottom and sidewall (1” female NPT) CIP spray ball and arm with CO2 supply quick connect Carbonation stone All fittings, clamps, and valves included with tank Pressure gauge Level gauge with isolation valves Sample valve Pressure/vacuum relief valve Stand pipe for bottom drain 3 front-mounted 1.5” tri-clamp ports (optional dial type thermometer, carbonation stone, 1.5″ tri-clamp cap)

SPECIFICATIONS 1BBL     Height 51.5″ Width 27.7″ Empty Weight 231lbs Net Volume 32 % Headspace 12% Pressure Rating 15 psi Glycol Jacket Pressure Rate 3 bar = 43.5 psi Insulation Thickness 60mm Manway Location Top Leg Support Locking Casters
