Kegging Manifold

Our Kegging Manifold is a complete setup designed to make the process of filling and washing kegs more efficient and effective, as you can semi-automate the process to fill 75% more kegs in the time that it takes to fill one by hand.

• Fast Filling: Fill four kegs simultaneously, customizable to six, making the process more efficient.
• Time-Saving: Ideal for small to medium sized breweries that are looking to maximize efficiency.
• Mimizes Foaming: Inlet and outlet control valves manage back pressure to minimize foaming.
• Durable and Easy to Clean: Stainless Steel build ensures longevity and ease of maintenance.

Features a full stainless steel body and probe that's resistant to chemicals and won't wear down or chip away like chrome-plated brass.

Parts Included:

• Sight glass

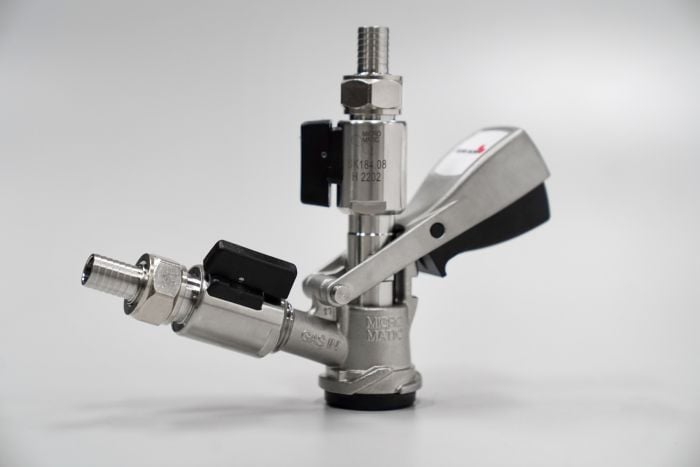

• Micro Matic brand Stainless Steel Keg Washing and Filling Couplers with dual 1/2" barb shutoffs.

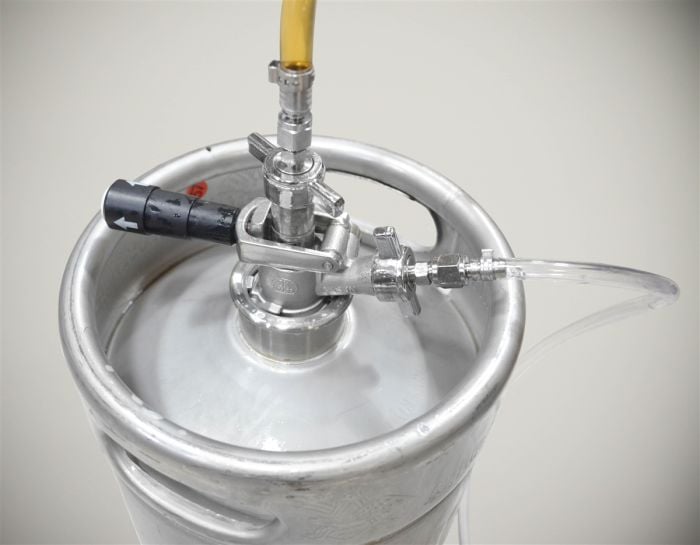

  • Specifically designed for manual keg washing / filling applications. Features: Enlarged inlet and outlet openings allowing fast liquid flow. Stainless Steel body for durability and resistance to chemicals. Stainless Steel handle fork for added strength. Stainless Steel probe is resistant chemicals and won't chip like chrome. Short handle for use with all keg sizes. Durable handle will withstand autoclave temperatures. Normal Use: Keg is inverted and wash solutions are injected under pressure through the beer outlet. This allows the caustic, sanitizer and then the rinse water to enter the keg through the keg valve and cascade down the inverted keg's inner surface. The wash solution and rinse water is then evacuated through the keg valve CO2 ports and finally out the CO2 port on the wash/fill head. A keg can be quickly emptied when the wash/fill head is connected to an upright keg. Or a keg can be filled using the same technique. Shutoffs are included to allow quick turn off from the inlet source and attachment to the next keg.
• 4-feet of hose, per keg connection
• Does not include a pressure relief valve (PRV) for sanitary purposes.

Demensions:

• Weight:  9.6 lbs
• Length:  28"
• Height:  6"
• Width:  7"
