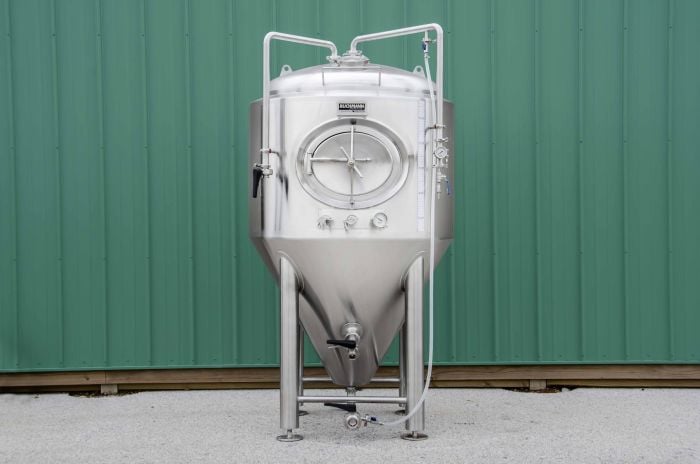

7 BBL Fermenter / Unitank

Out of stock
$6,550.00

Backed by our industry-leading 5-year warranty, you can purchase Blichmann unitank-capable fermenters with confidence knowing they’re built for optimal fermentation. Designed for compact spaces, all valves and accessories are front-mounted for easy use and close spacing between tanks.



Key features include:

  • 15 psi design pressure
  • 14-gauge, fully-welded, 304 stainless steel exterior shell with #4 brush
  • 11-gauge, 304 stainless steel interior shell
  • Interior finished to Ra 0.8 micron sanitary finish and passivated
  • 60-degree cone bottom, jacketed
  • Independent dimpled cooling jackets (cone and cylinder) with individual glycol inlet and outlet
  • Rotating rack arm with butterfly valve and cover
  • Bottom dump 1.5" tri-clamp fitting with butterfly valve, elbow, and cover
  • Sample valve
  • CIP arm with spray ball and piping
  • Blow-off port
  • Vacuum and pressure relief valve
  • 4"-thick polyurethane insulation for cooling jacket and cone
  • Shadowless side manway door
  • 10" diameter top hatch
  • 3" dial thermometer
  • Pressure gauge

WARNING:  This product can expose you to chemicals including Nickel (Metallic), which is known in the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov

SPECIFICATIONS 7 BBL
Height 89.5"
Width 48"
Empty Weight 672lbs
Gross Volume 273
Net Volume 250
% Head Space 20%
Pressure Rating 15 psi
Glycol Jacket Pressure Rate 3 bar = 43.5 psi
Insulation Thickness 80mm
Manway Location Front
Leg Support Leveling Feet
